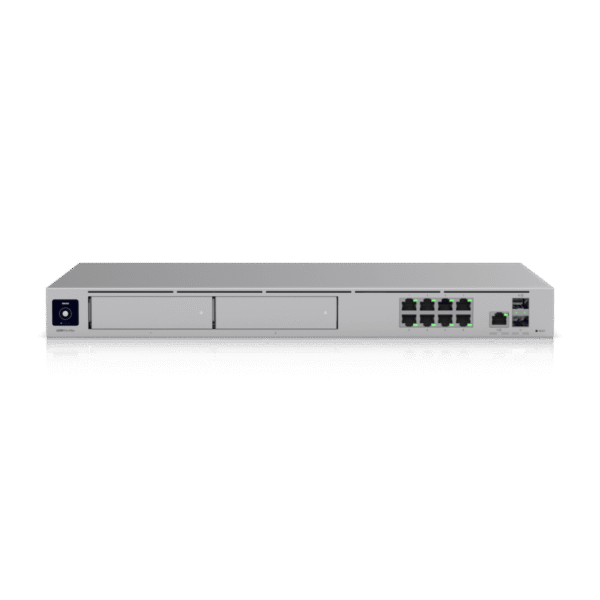

Ubiquiti Dream Machine Pro Max (UDM-Pro-Max)

Ubiquiti Dream Machine Pro Max (UDM-Pro-Max)

The Ubiquiti Dream Machine Pro Max (UDM-Pro-Max) is a high-performance, 10G UniFi Cloud Gateway designed for organizations that need secure, scalable, and centrally managed networks. It delivers exceptional routing power, intelligent security, multi-WAN flexibility, and built-in NVR storage in a compact 1U rack-mount form factor. Moreover, it supports hundreds of UniFi devices and thousands of clients—making it a trusted solution for enterprises across Kenya, now available from Dataworld Systems Kenya.

Product Overview

This advanced Cloud Gateway brings together routing, security, remote access, video storage, and system management into one powerful platform. Therefore, the UDM-Pro-Max is ideal for environments that demand constant uptime and deep network visibility. With support for 200+ UniFi devices and over 2,000 simultaneous users, it is built for large offices, hotels, education centers, and distributed enterprise sites.

In addition, its expanded memory, dual 3.5″ HDD bays, and 128 GB integrated SSD deliver fast UniFi application performance. The multiple WAN options, including 10G SFP+ and 2.5 GbE, allow businesses to combine high-speed internet links, implement failover, or run multi-ISP setups with ease.

Key Features

• 5 Gbps IDS/IPS security throughput – Provides enterprise-level protection without sacrificing speed.

• Massive device capacity – Manages 200+ UniFi devices, including switches, APs, cameras, and access hubs.

• Multi-camera NVR capability – Supports up to 15× 4K, 25× 2K, or 50× HD UniFi cameras with dual-HDD storage redundancy.

• Flexible high-speed WAN – Features (1) 10G SFP+ and (1) 2.5 GbE default WAN ports with support for up to 8 WAN links.

• Full UniFi application suite – Run Network, Protect, Access, Talk, and Connect from a single appliance.

• Advanced enterprise security – Includes Layer 7 firewall, application filtering, DPI, and 55,000+ IPS/IDS signatures via CyberSecure.

• License-free SD-WAN – Offers intelligent branch connectivity and site-to-site VPN without ongoing subscription fees.

• Multiple VPN standards – Supports WireGuard, OpenVPN, Teleport, IPsec, and L2TP for flexible remote access.

• High-availability architecture – Shadow Mode VRRP enables seamless gateway failover; UniFi LTE Backup supported.

• Smart touchscreen display – 1.3″ LCM screen shows system health, WAN status, alerts, and device indicators.

Technical Specifications

• Brand: Ubiquiti

• Model: Dream Machine Pro Max (UDM-Pro-Max)

• Form factor: 1U rack mount

• Dimensions: 442.4 × 43.7 × 285.6 mm

• Weight: 4.7 kg

• Processor: Quad-core ARM Cortex-A57 @ 2.0 GHz

• Memory: 8 GB

• Onboard storage: 32 GB eMMC + 128 GB SSD

• NVR storage: (2) × 3.5” HDD bays

• LAN ports: (8) × 1 GbE RJ45

• WAN ports: (1) 10G SFP+, (1) 2.5 GbE RJ45, up to 8 total WANs

• SFP+ ports: (2) 10G SFP+

• Max power usage: 60W

• Power supply: 100W internal PSU; AC input 100–240V

• Backup power: USP-RPS DC input supported

• Operating temperature: -10°C to 40°C

• Humidity: 5–95% non-condensing

• Enclosure: CNC aluminum + SGCC steel

• Certifications: CE, FCC, IC, SRRC, Anatel

• NDAA compliant: Yes
